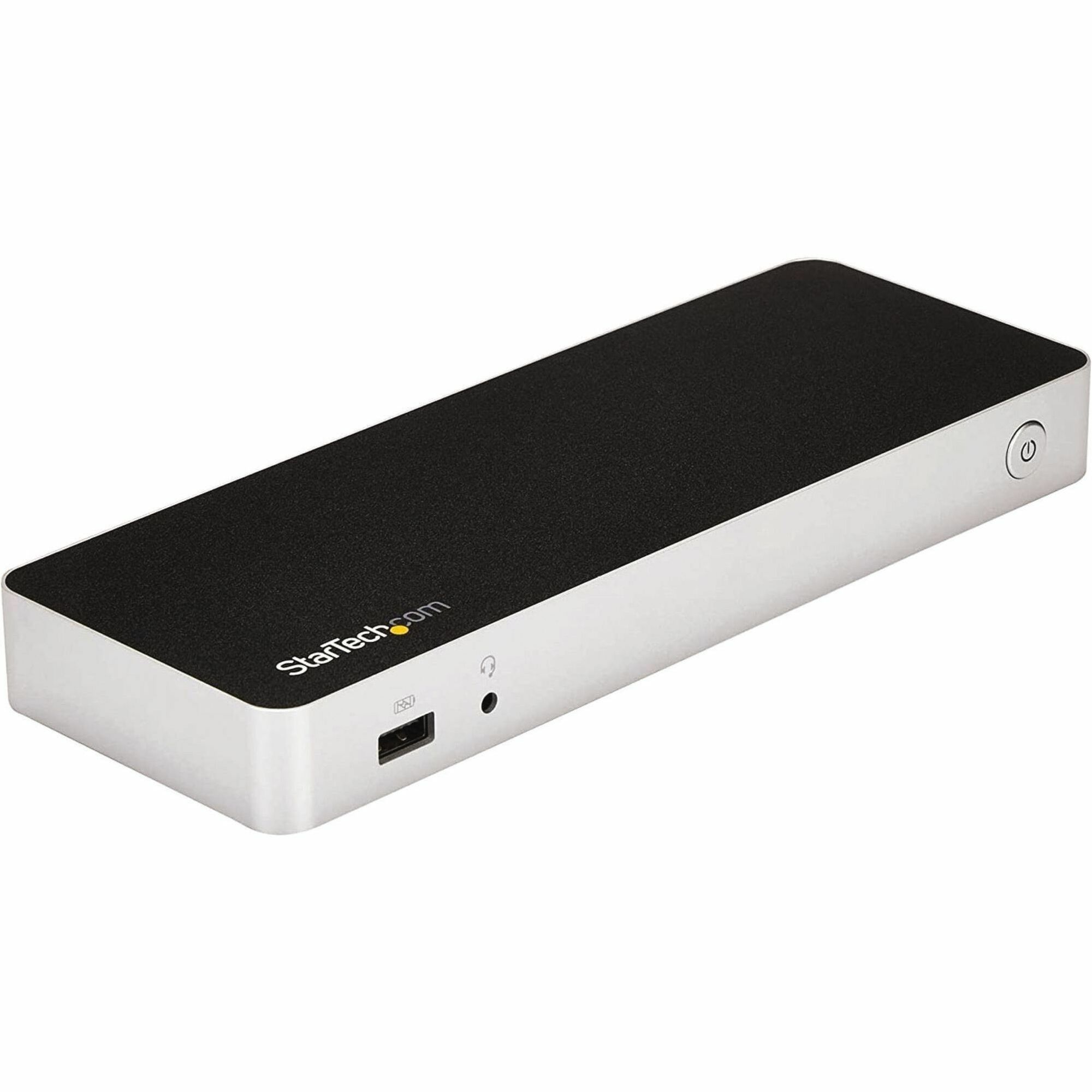

StarTech.com Docking Station
for Notebook, Monitor, Workstation - Charging Capability - USB 3.2 (Gen 1) Type C - 2 Displays Supported - 4K, WUXGA, 4K @30Hz, Full HD - 3840 x 2160, 1920 x 1200, 4096 x 2160, 1920 x 1080 - 6 x USB Ports - 5 x USB 3.0 - 4 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DVI - Black - Wired - Gigabit Ethernet - Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11 - 60W
STC 831733 ( 831733 )
Price: $523.99 (EA)
Catalogue Page Number: 0094
UPC: 0-65030-86833-4
Main Features
  • Connectivity Technology: Wired
  • Charging Capability: Yes
  • Number of Displays Supported: 2
  • Supported Resolutions: 3840 x 2160, 1920 x 1200, 4096 x 2160, 1920 x 1080
  • Screen Mode Supported: 4K, WUXGA, 4K @30Hz, Full HD
  • Management Features: PXE Boot, MAC Address Pass-through
  • Device Supported: Notebook, Monitor, Workstation
  • Ethernet Technology: Gigabit Ethernet
  • Host Interface: USB 3.2 (Gen 1) Type C
  • Total Number of USB Ports: 6
  • Number of USB 3.0 Ports: 5
  • Number of USB Type-C Ports: 2
  • USB Type-C: Yes
  • USB Type-C Detail: 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
  • Number of USB Type-A Ports: 4
  • USB Type-A: Yes
  • Number of RJ-45 Ports: 1
  • Network (RJ-45): Yes
  • Headphone/Microphone Combo Port: Yes
  • Number of HDMI Outputs: 2
  • HDMI: Yes
  • DVI: Yes
  • USB Power Delivery: 60W
  • Operating System Supported: Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11
  • Product Color: Black
  • Height: 0.90" (22.86 mm)
  • Width: 3.10" (78.74 mm)
  • Weight (Approximate): 9.10 oz (257.98 g)
  • Package Contents: Docking Station, 1 x 1m USB-C to USB-C Cable, 2 x HDMI to DVI Adapters, 1 x Universal Power Adapter (NA/JP, ANZ), 1 x Quick-Start Guide
  • Compatibility: Compatible Products:Dell XPS 13 Notebook, Lenovo ThinkPad X1 Carbon, HP Spectre Notebook, HP EliteBook, HP ProBook, Microsoft Surface Pro 7 Notebook
  • Environmentally Friendly: Yes
  • Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
  • Country of Origin: China
  • Limited Warranty: 3 Year
  • Marketing Information

    Enhance your productivity by turning your Windows USB-C laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.

    The USB-C dock lets you connect dual monitors with flexible options. Connect to:

    • 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz
    • 1x HDMI + 1x DVI display

    You can also connect a single 4K HDMI display.

    Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.

    This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.

    The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.

    The dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.

    Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

    Advanced Windows Layout Utility: To setup and save custom windows layouts.

    Mac Address Pass-Through Utility: To improve network security.

    USB Event Monitoring Utility: To track and log connected USB devices

    Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

    Package Contents
  • Contents: Docking Station, 1 x 1m USB-C to USB-C Cable, 2 x HDMI to DVI Adapters, 1 x Universal Power Adapter (NA/JP, ANZ), 1 x Quick-Start Guide
